SS Dutch Weave Wire Mesh 1.2m Stainless Steel Woven Mesh
Stainless Steel Woven Mesh Advantage
1. Good acid, alkali and corrosion resistance;
2. High strength, strong tensile force, toughness and wear
resistance, durable;
3. High temperature oxidation resistance, normal temperature
processing, that is, easy plastic processing, so that the
possibility of using stainless steel screen is diversified; high
finish, no surface treatment, easy maintenance.
Stainless Steel Woven Mesh Company Introduction
Our factory is a chemical factory integrating production, sales,
wholesale and retail. All products are provided with one-stop
service. From wire drawing, mesh weaving, deep processing and
inspection, we operate independently. All materials, sizes and
specifications can be customized according to customer
requirements. It is one of the largest manufacturers of stainless

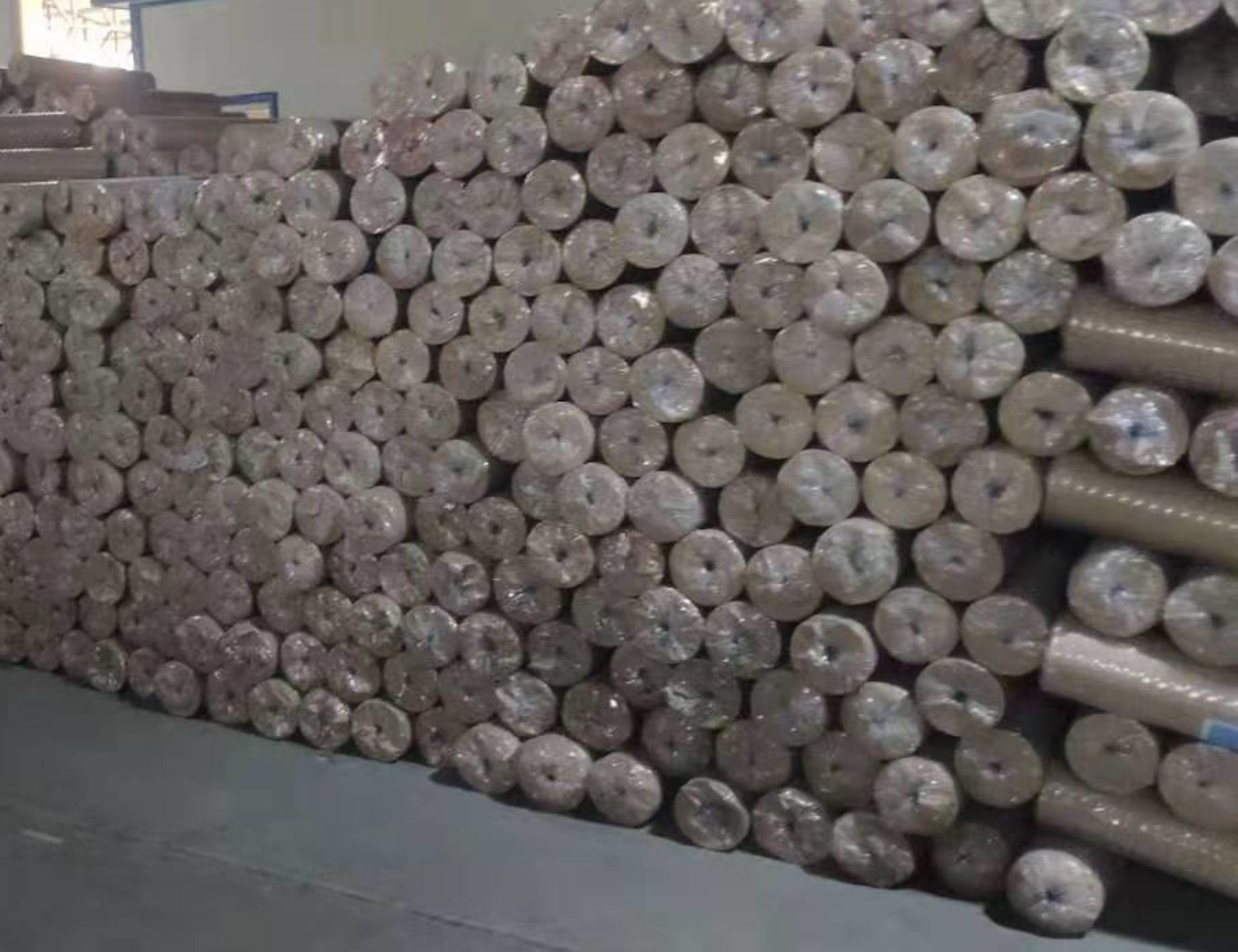

steel wire mesh in China. We have a large stock of many popular
standard items.
Stainless Steel Woven Mesh Stainless steel standard steel grade comparison table and density
table
| China | Japan | USA | South
Korea | EU | Australia | Taiwan, China | density t/m3 |
| GB/T20878 | JIS | ASTM | KS | BSEN | AS | CNS | |
| 12Cr13 | SUS403 | 403 | STS403 | — | 403 | 403 | 7.75 |
| 20Cr13 | SUS420J1 | 420 | STS420J1 | 1.4021 | 420 | 420J1 | 7.75 |
| 30Cr13 | SUS420J2 | — | STS420J2 | 1.4028 | 420J2 | 420J2 | 7.75 |
| 10Cr17 | SUS430 | 430 | STS430 | 1.4016 | 430 | 430 | 7.70 |
| 68Cr17 | SUS440A | 440A | STS440A | — | 440A | 440A | 7.70 |
| 06Cr19Ni10 | SUS304 | 304 | STS304 | 1.4301 | 304 | 304 | 7.93 |
| 022Cr19Ni10 | SUS304L | 304L | STS304L | 1.4306 | 304L | 304L | 7.93 |
| 06Cr17Ni12Mo2 | SUS316 | 316 | STS316 | 1.4401 | 316 | 316 | 7.98 |
| 022Cr17Ni12Mo2 | SUS316L | 316L | STS316L | 1.4404 | 316L | 316L | 7.98 |
| 06Cr18Ni11Ti | SUS321 | 321 | STS321 | 1.4541 | 321 | 321 | 7.93 |
| 06Cr18Ni11Nb | SUS347 | 347 | STS347 | 1.455 | 347 | 347 | 7.98 |
Stainless Steel Woven Mesh Technical Parameters:
| Square mesh, Plain weave or Twill weave |
| Aperture(mm) | Wire diameter(mm) | Mesh per inch(1inch=25.4mm) | Open area(%) | weight |
| W | D | MESH | FO | KG/M2 |
| 10.00 | 2.00 | 2.0 | 68 | 4.23 |
| 10.00 | 1.60 | 2.2 | 75 | 2.80 |
| 8.00 | 1.60 | 2.5 | 69 | 3.39 |
| 7.00 | 1.40 | 3.0 | 69 | 2.90 |
| 6.30 | 1.00 | 3.5 | 74 | 1.74 |
| 5.00 | 1.00 | 4.25 | 68 | 2.12 |
| 4.00 | 1.00 | 5.0 | 62 | 2.54 |
| 3.00 | 1.20 | 6.0 | 50 | 4.40 |
| 2.50 | 1.00 | 7.25 | 51 | 3.65 |
| 2.00 | 1.00 | 8.5 | 41 | 4.10 |
| 2.00 | 0.50 | 10.0 | 64 | 1.25 |
| 1.64 | 0.90 | 10.0 | 42 | 4.00 |
| 1.60 | 0.50 | 12.0 | 58 | 1.51 |
| 1.06 | 1.00 | 10.0 | 38 | 4.88 |
| 1.25 | 0.40 | 16.0 | 57 | 1.23 |
| 1.25 | 0.80 | 12.0 | 37 | 3.92 |
| 1.00 | 0.30 | 20.0 | 57 | 0.99 |
| 1.00 | 0.40 | 18.0 | 51 | 1.45 |
| 1.00 | 0.50 | 17.0 | 44 | 2.12 |
| 0.87 | 0.40 | 20 | 48 | 1.56 |
| 0.80 | 0.50 | 20 | 38 | 2.44 |
| 0.70 | 0.36 | 24 | 44 | 1.54 |
| 0.63 | 0.40 | 25 | 37 | 1.97 |
| 0.50 | 0.30 | 30 | 37 | 1.59 |
| 0.40 | 0.25 | 40 | 38 | 1.22 |
| 0.315 | 0.20 | 50 | 37 | 0.99 |
| 0.25 | 0.16 | 60 | 37 | 0.79 |
| 0.20 | 0.125 | 80 | 38 | 0.61 |
| 0.16 | 0.10 | 100 | 38 | 0.49 |
| 0.125 | 0.080 | 120 | 37 | 0.40 |
| 0.10 | 0.063 | 150 | 38 | 0.31 |
| 0.075 | 0.053 | 200 | 36 | 0.26 |
| 0.063 | 0.04 | 250 | 37 | 0.20 |
| 0.042 | 0.036 | 325 | 29 | 0.22 |
| 0.036 | 0.028 | 400 | 32 | 0.16 |
| 0.025 | 0.025 | 500 | 25 | 0.16 |
Stainless Steel Woven Mesh Characteristics
Customized according to customer requirements:
Material: 201, 304, 304L, 316, 316L and other stainless steel wire
etc.
