    SS201 Width 1.2m Woven Filter Cloth Stainless Steel Woven Wire Mesh

    Ask Lasest Price
    Brand Name : LONGKUO METAL WIRE MESH
    Price : $6 ~ 99/roll
    Payment Terms : T/T, Western Union
    Supply Ability : 100,000m2/year
    Delivery Time : About 7 work days depends on the supply
    • Product Details
    • Company Profile

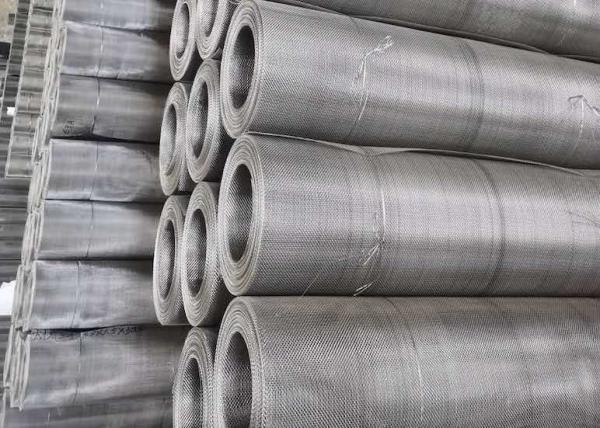

    SS201 Width 1.2m Woven Filter Cloth Stainless Steel Woven Wire Mesh

    Stainless Steel 201 Width 1.2m or as required Technique Woven Filter Cloth


    Filter Cloth Characteristics


    Customized according to customer requirements:

    Material: 201, 304, 304L, 316, 316L and other stainless steel wire etc.


    Filter ClothTechnology


    Plain weave, twill weave, mat weave, resistance welding, etc.

    1. Plain stainless steel mesh:

    The most common weaving method is widely used in industrial production and civil life. The main feature is that the density of warp and weft diameter is the same.

    2. Stainless steel square mesh

    Material: galvanized iron wire, stainless steel wire, copper wire, aluminum wire, etc. Features: precise structure, uniform mesh, good corrosion resistance, strong and durable. Widely used in industry and construction industry, screening sand, filtering liquid and gas. It can also be used for the safety protection of mechanical accessories, and it can also be used to make walls and ceilings instead of wooden strips.

    3. Stainless steel mat / dense mesh

    Material: stainless steel wire, low carbon steel wire, nickel wire, copper wire, polyester wire, etc. Weaving: plain weave, twill weave, bamboo flower weave, contrast weave. Features: good filtering precision, high load intensity of contrast net. Application: used in aerospace, petroleum, chemical industry, scientific research and transportation industry, also can make lunch box net, coal washing net, etc.


    Filter Cloth Advantage


    Good acid, alkali and corrosion resistance; high strength, strong tensile force, toughness and wear resistance, durable; high temperature oxidation resistance, normal temperature processing, that is, easy plastic processing, so that the possibility of using stainless steel screen is diversified; high finish, no surface treatment, easy maintenance.


    Filter Cloth Service


    Our company has a large number of regular specifications of stock, according to customer requirements for production and processing and customization.


    Filter Cloth Stainless steel standard steel grade comparison table and density table


    ChinaJapanUSASouth
    Korea
    EUAustraliaTaiwan, Chinadensity t/m3
    GB/T20878JISASTMKSBSENASCNS
    12Cr13SUS403403STS4034034037.75
    20Cr13SUS420J1420STS420J11.4021420420J17.75
    30Cr13SUS420J2STS420J21.4028420J2420J27.75
    10Cr17SUS430430STS4301.40164304307.70
    68Cr17SUS440A440ASTS440A440A440A7.70
    06Cr19Ni10SUS304304STS3041.43013043047.93
    022Cr19Ni10SUS304L304LSTS304L1.4306304L304L7.93
    06Cr17Ni12Mo2SUS316316STS3161.44013163167.98
    022Cr17Ni12Mo2SUS316L316LSTS316L1.4404316L316L7.98
    06Cr18Ni11TiSUS321321STS3211.45413213217.93
    06Cr18Ni11NbSUS347347STS3471.4553473477.98

    Filter Cloth Technical Parameters:


    Square mesh, Plain weave or Twill weave
    Aperture(mm)Wire diameter(mm)Mesh per inch(1inch=25.4mm)Open area(%)weight
    WDMESHFOKG/M2
    10.002.002.0684.23
    10.001.602.2752.80
    8.001.602.5693.39
    7.001.403.0692.90
    6.301.003.5741.74
    5.001.004.25682.12
    4.001.005.0622.54
    3.001.206.0504.40
    2.501.007.25513.65
    2.001.008.5414.10
    2.000.5010.0641.25
    1.640.9010.0424.00
    1.600.5012.0581.51
    1.061.0010.0384.88
    1.250.4016.0571.23
    1.250.8012.0373.92
    1.000.3020.0570.99
    1.000.4018.0511.45
    1.000.5017.0442.12
    0.870.4020481.56
    0.800.5020382.44
    0.700.3624441.54
    0.630.4025371.97
    0.500.3030371.59
    0.400.2540381.22
    0.3150.2050370.99
    0.250.1660370.79
    0.200.12580380.61
    0.160.10100380.49
    0.1250.080120370.40
    0.100.063150380.31
    0.0750.053200360.26
    0.0630.04250370.20
    0.0420.036325290.22
    0.0360.028400320.16
    0.0250.025500250.16
