3/500 Dutch Weave Wire Mesh SS201 0.025mm 2mm Stainless Steel Woven
Mesh
Stainless Steel Woven Mesh Technology
Plain weave, twill weave, mat weave, resistance welding, etc.
1. Plain stainless steel mesh:
The most common weaving method is widely used in industrial
production and civil life. The main feature is that the density of
warp and weft diameter is the same.
2. Stainless steel square mesh
Material: galvanized iron wire, stainless steel wire, copper wire,
aluminum wire, etc. Features: precise structure, uniform mesh, good
corrosion resistance, strong and durable. Widely used in industry
and construction industry, screening sand, filtering liquid and
gas. It can also be used for the safety protection of mechanical
accessories, and it can also be used to make walls and ceilings
instead of wooden strips.
3. Stainless steel mat / dense mesh
Material: stainless steel wire, low carbon steel wire, nickel wire,
copper wire, polyester wire, etc. Weaving: plain weave, twill
weave, bamboo flower weave, contrast weave. Features: good
filtering precision, high load intensity of contrast net.
Application: used in aerospace, petroleum, chemical industry,
scientific research and transportation industry, also can make
lunch box net, coal washing net, etc.
Stainless Steel Woven Mesh Company Introduction
Our factory is a chemical factory integrating production, sales,
wholesale and retail. All products are provided with one-stop
service. From wire drawing, mesh weaving, deep processing and
inspection, we operate independently. All materials, sizes and
specifications can be customized according to customer
requirements. It is one of the largest manufacturers of stainless
steel wire mesh in China. We have a large stock of many popular
standard items.
Stainless Steel Woven Mesh Technical Parameters:
| Square mesh, Plain weave or Twill weave |
| Aperture(mm) | Wire diameter(mm) | Mesh per inch(1inch=25.4mm) | Open area(%) | weight |
| W | D | MESH | FO | KG/M2 |
| 10.00 | 2.00 | 2.0 | 68 | 4.23 |
| 10.00 | 1.60 | 2.2 | 75 | 2.80 |
| 8.00 | 1.60 | 2.5 | 69 | 3.39 |
| 7.00 | 1.40 | 3.0 | 69 | 2.90 |
| 6.30 | 1.00 | 3.5 | 74 | 1.74 |
| 5.00 | 1.00 | 4.25 | 68 | 2.12 |
| 4.00 | 1.00 | 5.0 | 62 | 2.54 |
| 3.00 | 1.20 | 6.0 | 50 | 4.40 |
| 2.50 | 1.00 | 7.25 | 51 | 3.65 |
| 2.00 | 1.00 | 8.5 | 41 | 4.10 |
| 2.00 | 0.50 | 10.0 | 64 | 1.25 |
| 1.64 | 0.90 | 10.0 | 42 | 4.00 |
| 1.60 | 0.50 | 12.0 | 58 | 1.51 |
| 1.06 | 1.00 | 10.0 | 38 | 4.88 |
| 1.25 | 0.40 | 16.0 | 57 | 1.23 |
| 1.25 | 0.80 | 12.0 | 37 | 3.92 |
| 1.00 | 0.30 | 20.0 | 57 | 0.99 |
| 1.00 | 0.40 | 18.0 | 51 | 1.45 |
| 1.00 | 0.50 | 17.0 | 44 | 2.12 |
| 0.87 | 0.40 | 20 | 48 | 1.56 |
| 0.80 | 0.50 | 20 | 38 | 2.44 |
| 0.70 | 0.36 | 24 | 44 | 1.54 |
| 0.63 | 0.40 | 25 | 37 | 1.97 |
| 0.50 | 0.30 | 30 | 37 | 1.59 |
| 0.40 | 0.25 | 40 | 38 | 1.22 |
| 0.315 | 0.20 | 50 | 37 | 0.99 |
| 0.25 | 0.16 | 60 | 37 | 0.79 |
| 0.20 | 0.125 | 80 | 38 | 0.61 |
| 0.16 | 0.10 | 100 | 38 | 0.49 |
| 0.125 | 0.080 | 120 | 37 | 0.40 |
| 0.10 | 0.063 | 150 | 38 | 0.31 |
| 0.075 | 0.053 | 200 | 36 | 0.26 |
| 0.063 | 0.04 | 250 | 37 | 0.20 |
| 0.042 | 0.036 | 325 | 29 | 0.22 |
| 0.036 | 0.028 | 400 | 32 | 0.16 |
| 0.025 | 0.025 | 500 | 25 | 0.16 |

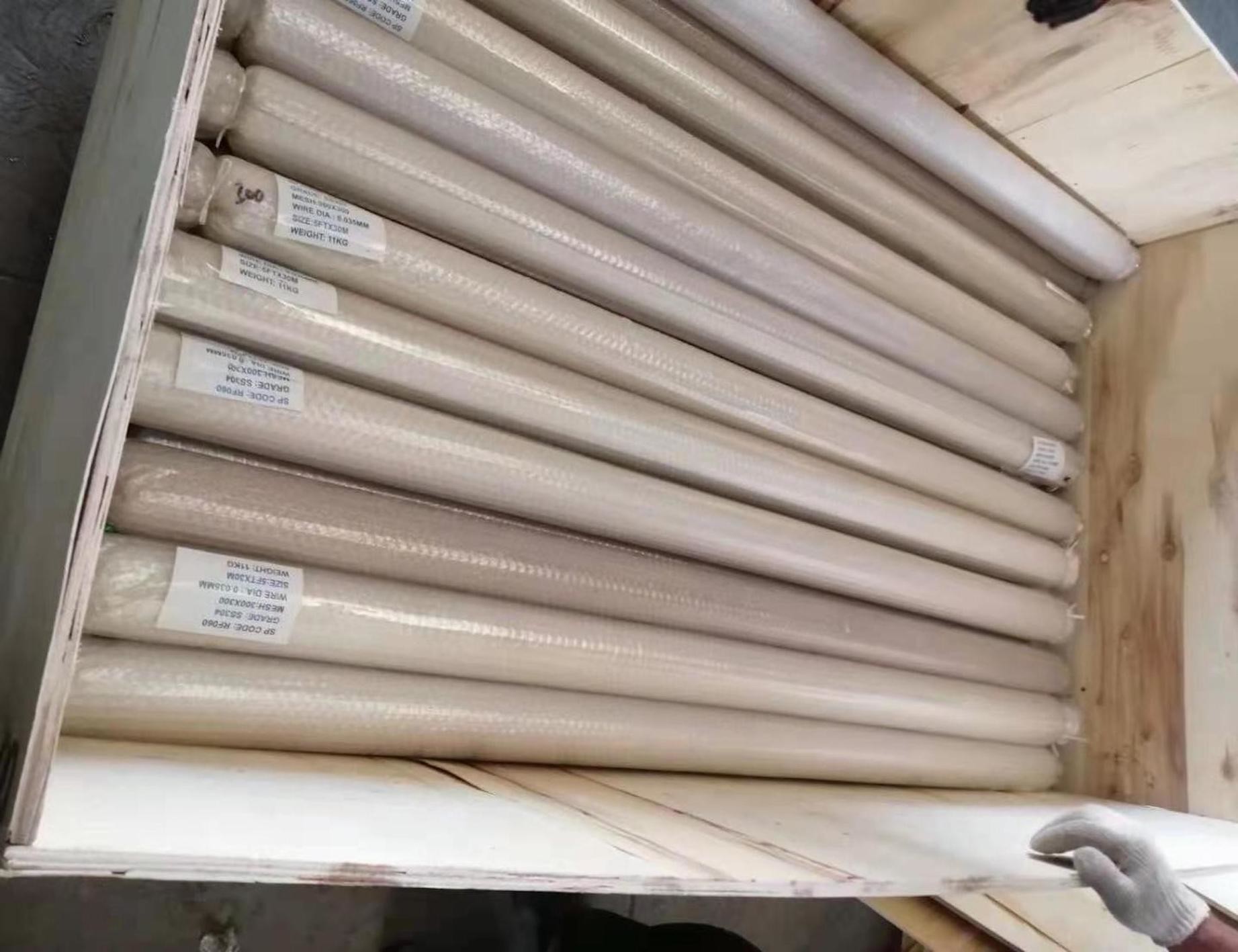

Stainless Steel Woven Mesh Service
Our company has a large number of regular specifications of stock,
according to customer requirements for production and processing
and customization.
