Length 0.5 - 12m Corrosion Resistance 304L Stainless Steel Plate
Stainless Steel Punching And Drawing Net
Production process
There are many processes in the production process of steel mesh
First of all, the high-quality metal plate is used, and the mesh of
the steel mesh can be formed through this process.
After the steel mesh is stretched, the length and width of the
steel mesh shall meet the requirements through the measurement of
the inspector.
After the steel mesh passes the inspection, the steel mesh is sent
to the flat mesh workshop, and the steel mesh is flattened by the
double roll flattening machine. During the process, the flattener
needs to check whether the mesh is firmly connected.
Then according to the customer's requirements and then surface
treatment, treatment methods are: oiling, galvanizing, spray, rinse
paint, etc.
After passing the inspection, it can be packed and finished.
Characteristics
1, Acid and alkali resistance, corrosion resistance
2, The product is light and strong
3, Beautiful and transparent
4, High tensile strength
Five, anti-aging for fifty years.
6, The products are widely used
7, The mesh is varied
8, It's cheap
9, High temperature resistance
Usage
Steel mesh series, hole firm, long service life, widely used,
mainly used in civil construction, batch cement, machinery and
equipment protection, handicraft manufacturing, high-grade speaker
net cover. Highway guardrail, stadium fence, road green belt
protection net. Heavy steel mesh can be used for pedal mesh of oil
tank truck, working platform, escalator and walkway of heavy
machinery and boiler, oil mine well, locomotive, 10000 ton ship,
etc. It can also be used in construction industry, highway and
bridge as reinforcement.
It is also used in national defense, industry, railway, highway,
shipbuilding, coal, light industry, textile, building materials,
agriculture and sideline industry, breeding industry, garden,
mineral industry, petrochemical industry, household appliances. It
is also used in integrated ceiling, door and window anti-theft,
safety channel, corridor, stair baffle, tables, chairs, benches,
ventilators, all kinds of cargo carrying frames, shelves, etc.
Nowadays, the most suitable guardrail material for railway is steel
mesh!
Product classification
According to material classification: low carbon steel sheet,
aluminum plate, stainless steel plate, aluminum magnesium alloy
plate, steel plate and other plates.
Classification by use: widely used in highway, railway, civil
construction, water conservancy and other construction, all kinds
of machinery, electrical appliances, window protection and
aquaculture, etc. According to the requirements of customers, we
can process and customize all kinds of products with special
specifications.
Classification by pass
1. Fish scale hole steel aluminum metal mesh
2. Hexagonal hole steel aluminum sheet mesh
3. Fancy steel aluminum sheet mesh
4. Tortoise shell steel aluminum metal plate net
Specification introduction
Specifications name |
Explain
|
SWM
| The length of the short diamond diagonal from the center of the
node to the center of the node.
|
LWM
| The length of the long diamond diagonal from the center of the node
to the center of the node.
|
| SWD (inner hole) | The length of the diagonal of a short diamond hole.
|
| LWD (inner hole) | The length of the diagonal of a long diamond hole.
|
| Strand | The width of the edge of the diamond hole of the steel mesh (as
shown in the figure) is the length of the metal plate used to make
a wire rod.
|
| Bond | The joint of two stems.
|
| Thickness | The thickness of the original steel plate.
|

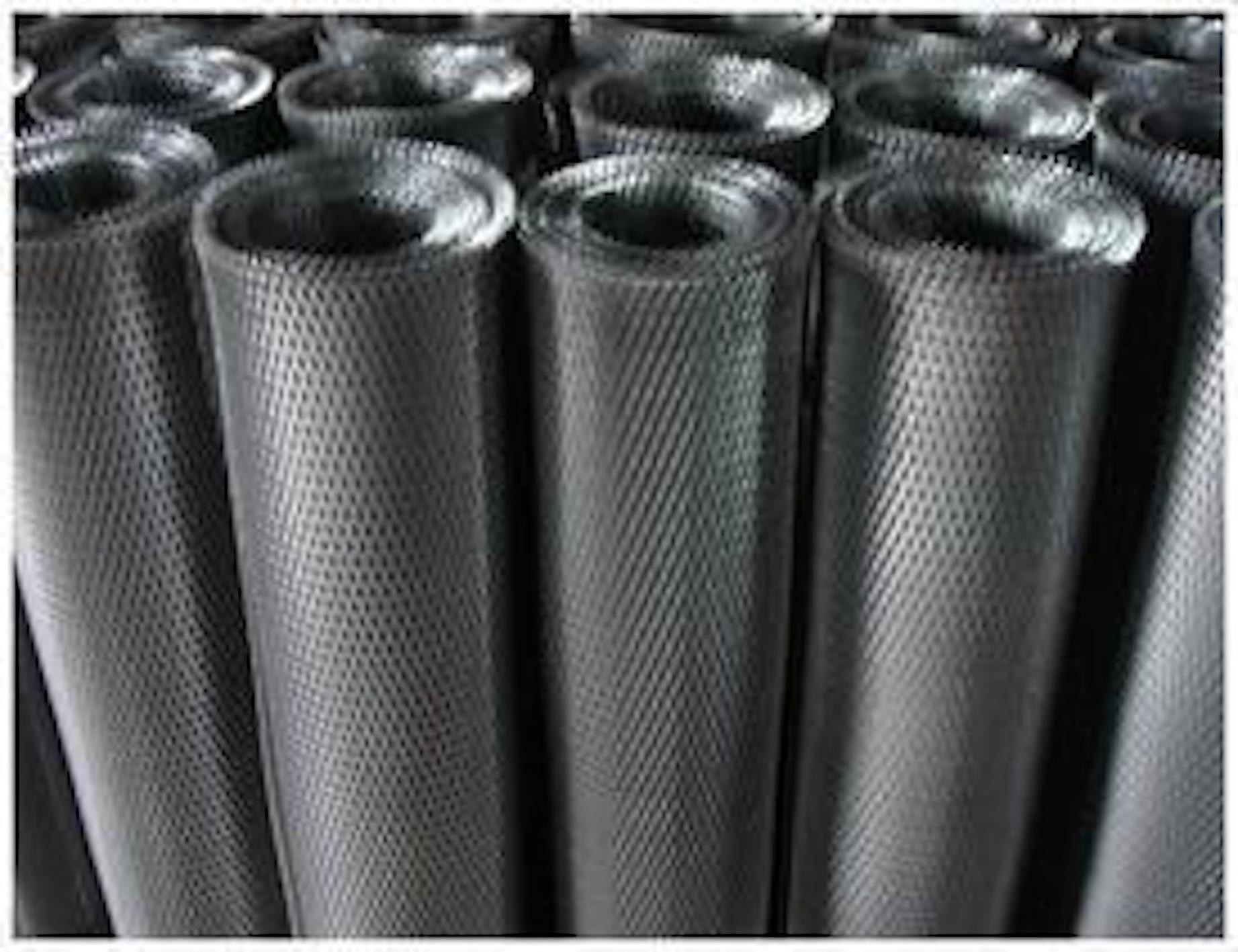

| Mesh Volume | A rolled steel mesh showing the specific length and width.
|
| Mesh Plate | Indicate the specific length and width of the steel mesh
|
Specifications
| Specifications |
| Tickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4.0 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3.0 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 2 | 10 | 3.0 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
