Diameter Range 0.09mm - 0.45mm In Spool Steel Grade Stainless Steel
201 Hydrogen Wire
Product Information
Stainless steel wire, also known as stainless steel wire, is made
of stainless steel as raw material for various kinds of silk
products of different specifications and models. The cross section
is generally round or flat. The common stainless steel wires with
good corrosion resistance and high cost performance are 201, 304
and 316 stainless steel wires.
Technology
Stainless steel wire drawing is a metal plastic processing process
in which the wire rod or wire blank is pulled out from the die hole
of drawing die under the action of drawing force to produce small
section steel wire or non-ferrous wire. Wire with different cross
section shape and size of various metals and alloys can be produced
by drawing. The drawn wire has the advantages of accurate size,
smooth surface, simple drawing equipment and die, and easy
manufacturing.
Service

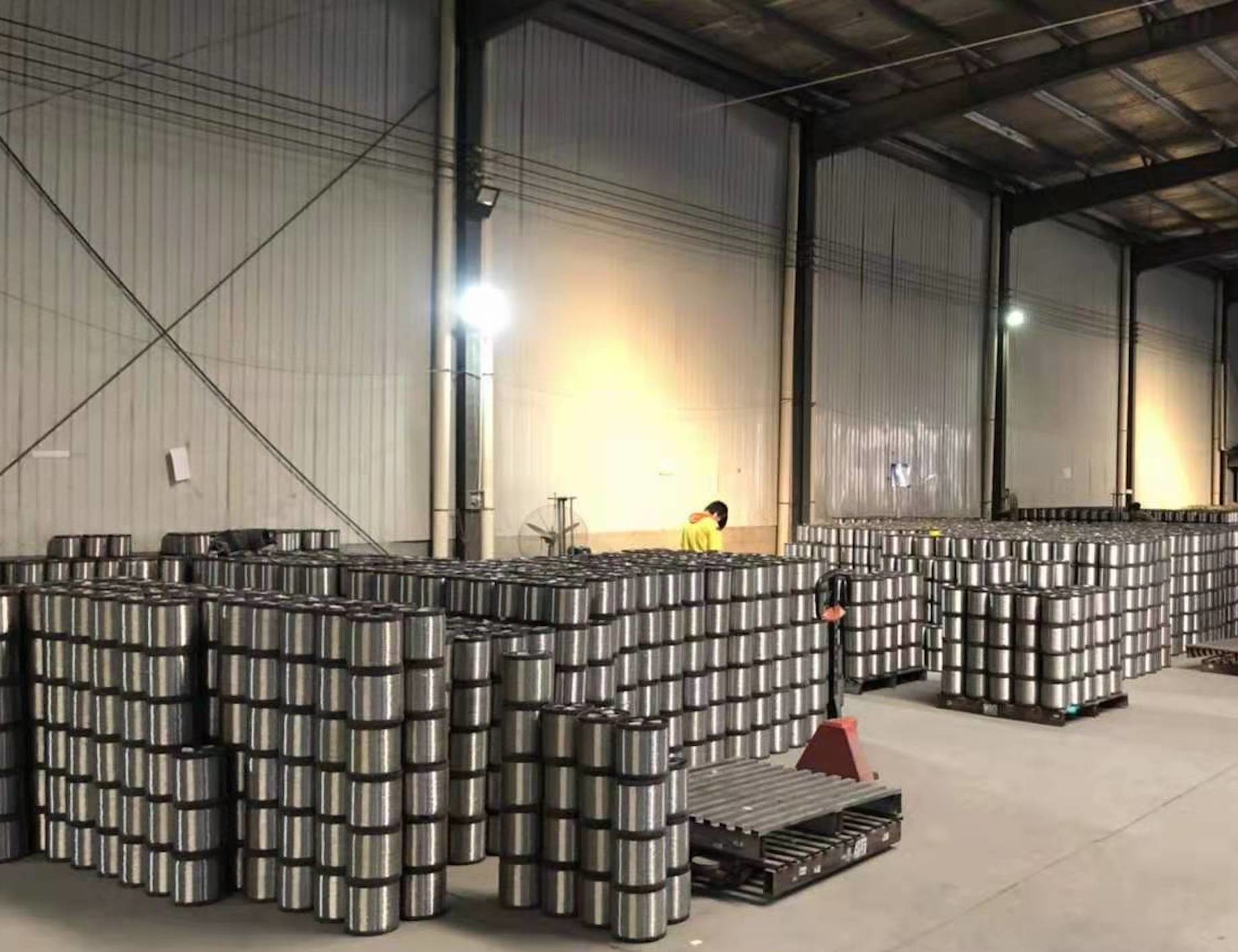

Our company can produce and process and order according to customer
requirements, and have a large number of stock in stock in regular
specifications all year round.
Specifications
| Name | Code |
Characteristics
| Specification | Material |
Stainless steel soft wire / Hydrogen wire | S, soft | Bright surface, soft, no magnetism, fatigue resistance, large
extension force and other characteristics
| 0.09 — 0.45mm | 201, 304, 304L, 316, 316L, 310, 310S, 321, etc.
|
Stainless steel light cable
| LD, lightly drawn | After heat treatment, the steel wire shall be pulled with small
reduction surface. The surface is bright, soft, fatigue resistant,
and has certain elongation.
| 0.5 — 1.5mm | 201, 304, 304L, 316, 316L, etc.
|
Stainless steel cold cable
| WCD, cold drawn | The surface is smooth, toughness is good and wear resistant
| 0.03 — 6.0mm | 201, 304, 304L, 316, 316L, etc.
|
Stainless steel spring wire
| - | High hardness, strong elasticity, good wear resistance and
compression resistance
| 0.15 — 5.0mm | 302, 304H, 304L, 316, 316L, 310, 310S, 321, etc.
|
Material composition table
AISI Material | Chemical composition (%) |
| C | Si | Mn | P | S | Ni | Cr | Mo | Cu | Ti |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.06 | ≤0.03 | 3.5~5.5 | 16~18 | - | - | - |
| 304 | <0.08 | <1.0 | <2.0 | <0.035 | <0.03 | 8~10 | 17~19 | - | - | - |
| 304L | <0.03 | <1.0 | <2.0 | <0.04 | <0.03 | 9~13 | 18~20 | - | - | - |
| 304HC | <0.06 | <1.0 | 1.2-1.8 | <0.035 | <0.03 | 8~11 | 17~19 | - | 2.0-3.0 | - |
| 316 | <0.08 | <1.0 | <2.0 | <0.04 | <0.03 | 10~14 | 16~18 | 2.0~3.0 | - | - |
| 316L | <0.03 | <1.0 | <2.0 | <0.04 | <0.03 | 12~15 | 16~18 | 2.0~3.0 | - | - |
| 310S | <0.08 | <1.5 | <2.0 | <0.04 | <0.03 | 19~22 | 24~26 | - | - | - |
| 321 | <0.08 | <1.0 | <2.0 | <0.045 | <0.03 | 9~13 | 17~19 | - | - | >0.035 |
| 301 | <0.15 | <1.0 | <2.0 | <0.04 | <0.03 | >7 | 16~18 | - | - | - |
| 302 | <0.15 | <1.0 | <2.0 | <0.04 | <0.03 | >8 | 17~19 | - | - | - |
| | | | | | | | | | |
Product specification parameter table
| Wire diameter(mm) | Tolerance(mm) | Maximum diameter deviation(mm) |
| 0.020-0.049 | +0.002 -0.001 | 0.001 |
| 0.050-0.074 | ±0.002 | 0.002 |
| 0.075-0.089 | ±0.002 | 0.002 |
| 0.090-0.109 | +0.003 -0.002 | 0.002 |
| 0.110-0.169 | ±0.003 | 0.003 |
| 0.170-0.184 | ±0.004 | 0.004 |
| 0.185-0.199 | ±0.004 | 0.004 |
| 0.-0.299 | ±0.005 | 0.005 |
| 0.300-0.310 | ±0.006 | 0.006 |
| 0.320-0.499 | ±0.006 | 0.006 |
| 0.500-0.599 | ±0.006 | 0.006 |
| 0.600-0.799 | ±0.008 | 0.008 |
| 0.800-0.999 | ±0.008 | 0.008 |
| 1.00-1.20 | ±0.009 | 0.009 |
| 1.20-1.40 | ±0.009 | 0.009 |
| 1.40-1.60 | ±0.010 | 0.010 |
| 1.60-1.80 | ±0.010 | 0.010 |
| 1.80-2.00 | ±0.010 | 0.010 |
| 2.00-2.50 | ±0.012 | 0.012 |
| 2.50-3.00 | ±0.015 | 0.015 |
| 3.00-4.00 | ±0.020 | 0.020 |
| 4.00-5.00 | ±0.020 | 0.020 |
Characteristics
1. It has strong heat resistance.
316 stainless steel no matter it is used intermittently at 1600 ℃
or continuously at 1700 ℃, there will not be any change, let alone
melting, which has obvious advantages compared with copper and
aluminum. Because of such advantages, it is widely used in the
metallurgical industry and has made great contribution to the
industry.
2. It has corrosion resistance.
Because his raw material is stainless steel, and stainless steel
contains carbon, manganese, nickel and other elements, after the
reaction in the air, it will form a protective film, which can
reduce the impact of the outside world on stainless steel.
Stainless steel is not easy to react with acid and alkali, and has
good corrosion resistance, so it will be found that stainless steel
wire plays a very extensive role in the paper industry and deep-sea
operators.
3. It has strong plasticity.
This property can make it into various shapes under the condition
of external force. This is a rare decorative material for
designers, because of its low hardness, it can be changed into
various shapes according to the demand, so as to achieve the
purpose of decoration, with a strong decorative effect. It is
precisely because it has obvious advantages compared with iron,
aluminum, copper, etc., so now people use it much more.
