Plain Weave type 500 Mesh Wire Diameter 0.025mm Stainless Steel
Screen
Production process
1. Raw materials for stainless steel wire drawing
2. Stainless steel drawing line production
3. Water tank wire drawing machine -- wire drawing and annealing
4. Stainless steel wire 0.50mm-1mm
5. Stainless steel mesh weaving
6. Stainless Steel Diamond mesh
7. Net cutting
8. Finished product testing

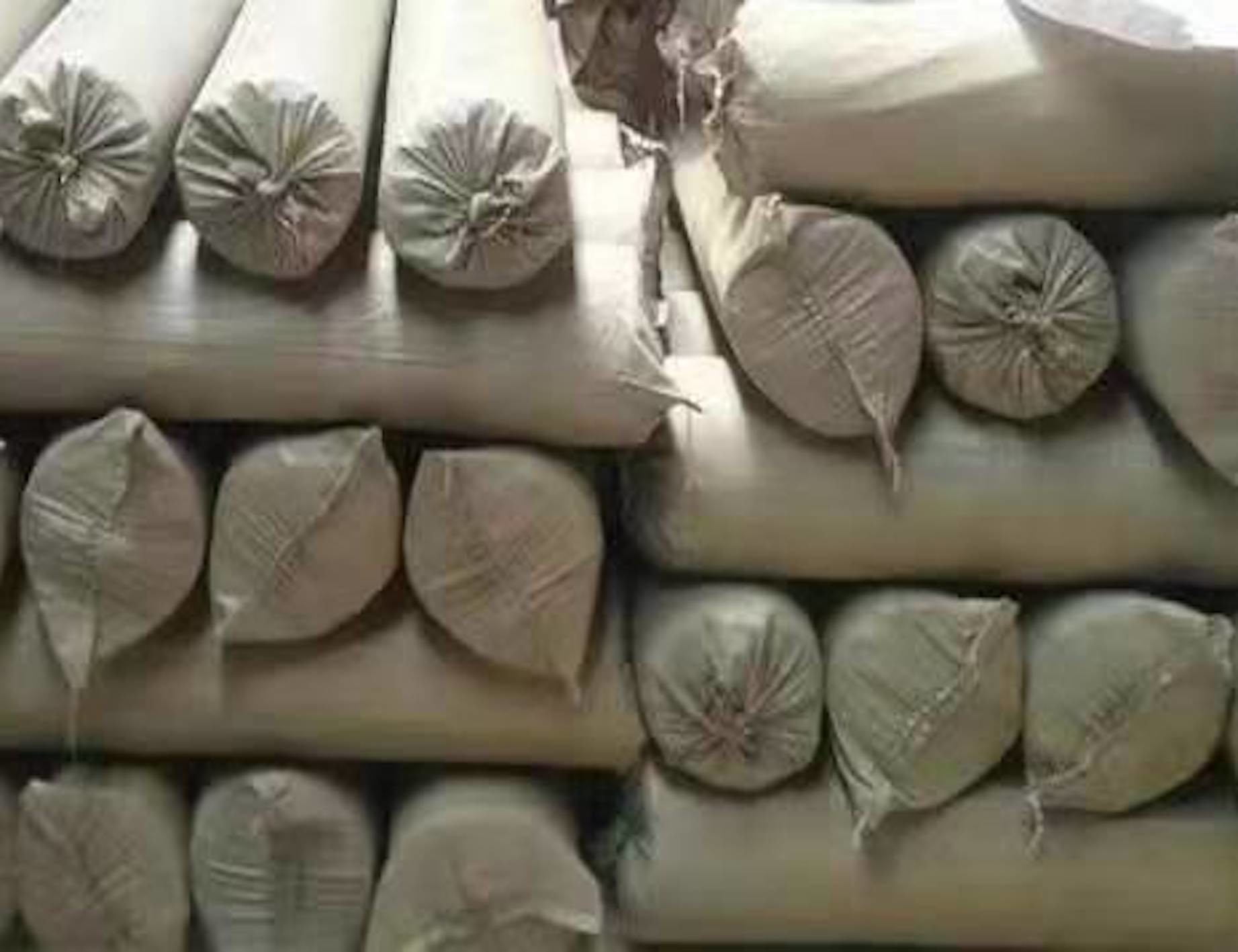

9. Packing and delivery
Specifications
| Name | stainless steel screen, also known as stainless steel filter, woven
screen, plain screen, stainless steel wire cloth, high mesh super
wide stainless steel screen, stainless steel screen, stainless
steel industrial filter cloth, etc. |
| Varieties | stainless steel plain weave net, stainless steel twill weave net,
stainless steel plain weave dense weave net (stainless steel mat
net), stainless steel twill weave dense weave net, stainless steel
contrast weave dense weave net, etc. |
| Material | SS201, SS304, SS304L, SS316, SS316L. |
| Weaving | plain weave, twill weave, bamboo weave, plain dutch weave, twill
dutch weave, reverse dutch weave, etc. |
| Application | stainless steel screen is widely used in screening, filtration and
protection decoration, and it is widely used in mining, petroleum,
chemical, food, medicine, machinery manufacturing, construction
decoration, electronics, aerospace and other industries. |
Material composition table
AISI
Material | Chemical omposition(%) |
| C | Si | Mn | P | S | Ni | Cr | Mo | Cu | Ti |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.06 | ≤0.03 | 3.5~5.5 | 16~18 | - | - | |
| 304 | <0.08 | <1.0 | <2.0 | <0.035 | <0.03 | 8~10 | 17~19 | - | - | - |
| 304L | <0.03 | <1.0 | <2.0 | <0.04 | <0.03 | 9~13 | 18~20 | - | - | - |
| 316 | <0.08 | <1.0 | <2.0 | <0.04 | <0.03 | 10~14 | 16~18 | 2.0~3.0 | - | - |
| 316L | <0.03 | <1.0 | <2.0 | <0.04 | <0.03 | 12~15 | 16~18 | 2.0~3.0 | - | |
Application
1. It is used for screening and filtration in acid and alkali
environment, mud screen in petroleum industry, screen screen in
chemical fiber industry and pickling screen in electroplating
industry.
2. Used in mining, petroleum, chemical, food, medicine, machinery
manufacturing, aerospace research and transportation industries.
3. It is used in industry and construction industry to filter sand,
liquid and gas. It can also be used for the safety protection of
mechanical accessories, and it can also be used to make walls and
ceilings instead of wooden strips. It can also make lunch box net,
coal washing net, etc.
Company Introduction
We are one of the largest manufacturers of stainless steel wire
mesh in China. It is a chemical plant integrating production,
sales, wholesale and retail. All products are provided with
one-stop service. From wire drawing, mesh weaving, deep processing
and inspection, we operate independently. All materials, sizes and
specifications can be customized according to customer
requirements.
