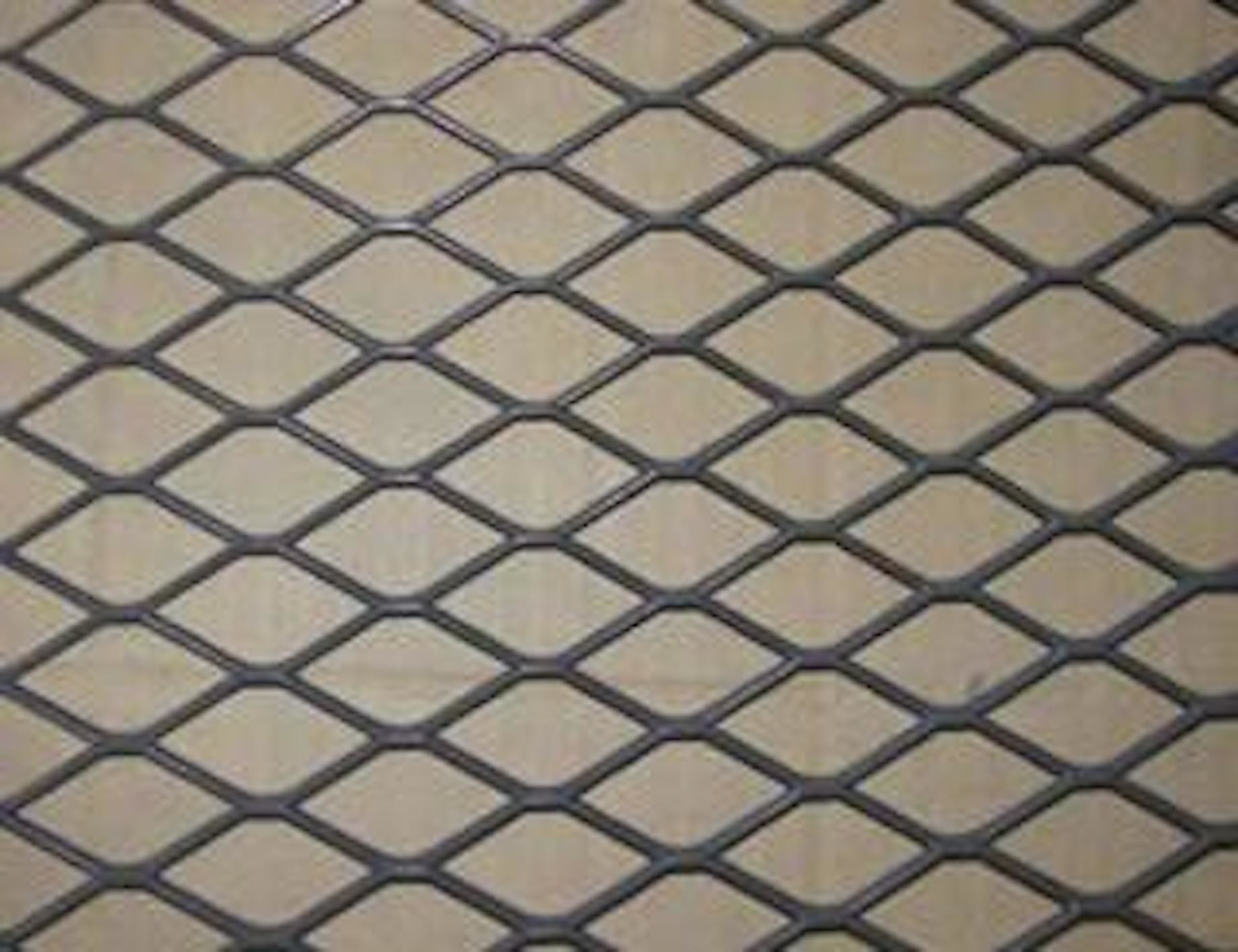

Walkways Low Carbon Steel Plate PVC Coated Iron Plate Mesh
Packaging
Generally divided into 1. Pallet waterproof paper, waterproof cloth
2. Wooden case, waterproof paper 3. With shrink film and woven bags
of the volume 4. Bulk, etc.
Product classification
According to material classification: low carbon steel sheet,
aluminum plate, stainless steel plate, aluminum magnesium alloy
plate, steel plate and other plates.
Classification by use: widely used in highway, railway, civil
construction, water conservancy and other construction, all kinds
of machinery, electrical appliances, window protection and
aquaculture, etc. According to the requirements of customers, we
can process and customize all kinds of products with special
specifications.
Classification by pass
1. Fish scale hole steel aluminum metal mesh
2. Hexagonal hole steel aluminum sheet mesh
3. Fancy steel aluminum sheet mesh
4. Tortoise shell steel aluminum metal plate net
Surface Treatment
PVC dip (spray, coating), hot dip galvanizing, electro galvanizing,
anodizing (aluminum), spray antirust paint and so on.
Antirust methods
1, Some rare elements are added to the common steel to change the
internal structure of the metal.
2, The metal surface is covered with a protective layer to isolate
the surrounding corrosive medium, so as to prevent corrosion. For
example: the steel mesh surface is coated with oil, Vaseline, paint
or covered with enamel, PVC and other corrosion-resistant
non-metallic materials; A layer of zinc, chromium and nickel is
plated on the surface of steel plate by means of electroplating,
hot plating and spray plating; A fine and stable oxide film is
formed on the surface of steel by chemical method. Such as forming
a layer of fine black ferric oxide film on the surface of machine
parts, guns and other steel parts.
3, Often wipe metal equipment or put desiccant in precision
instruments and add a small amount of corrosion inhibitor in
corrosive medium to slow down the corrosion rate.
Specification introduction
Specifications name |
Explain
|
SWM
| The length of the short diamond diagonal from the center of the
node to the center of the node.
|
LWM
| The length of the long diamond diagonal from the center of the node
to the center of the node.
|
| SWD (inner hole) | The length of the diagonal of a short diamond hole.
|
| LWD (inner hole) | The length of the diagonal of a long diamond hole.
|
| Strand | The width of the edge of the diamond hole of the steel mesh (as
shown in the figure) is the length of the metal plate used to make
a wire rod.
|
| Bond | The joint of two stems.
|
| Thickness | The thickness of the original steel plate.
|

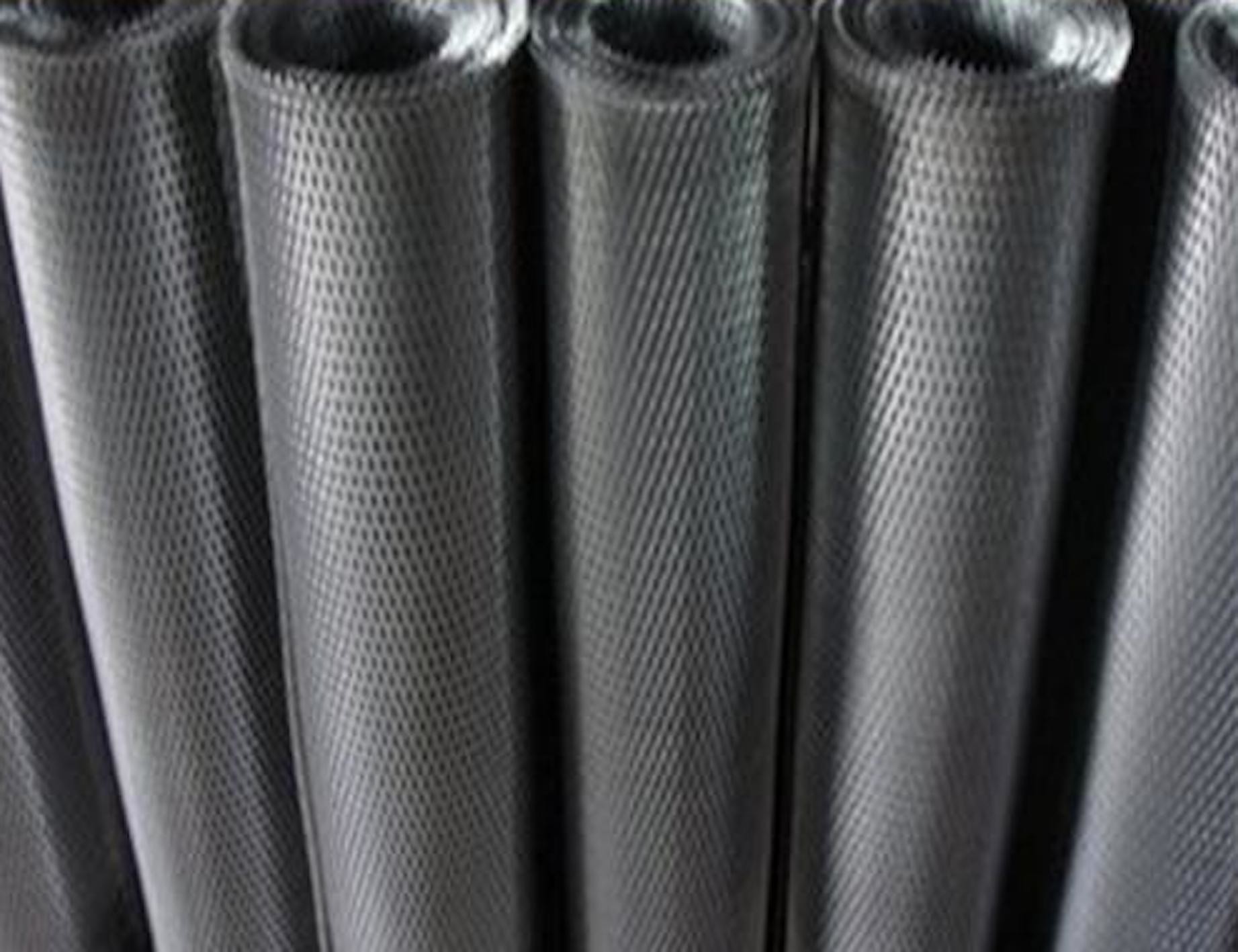

| Mesh Volume | A rolled steel mesh showing the specific length and width.
|
| Mesh Plate | Indicate the specific length and width of the steel mesh
|
Specifications
| Specifications |
| Tickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4.0 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3.0 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 2 | 10 | 3.0 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
