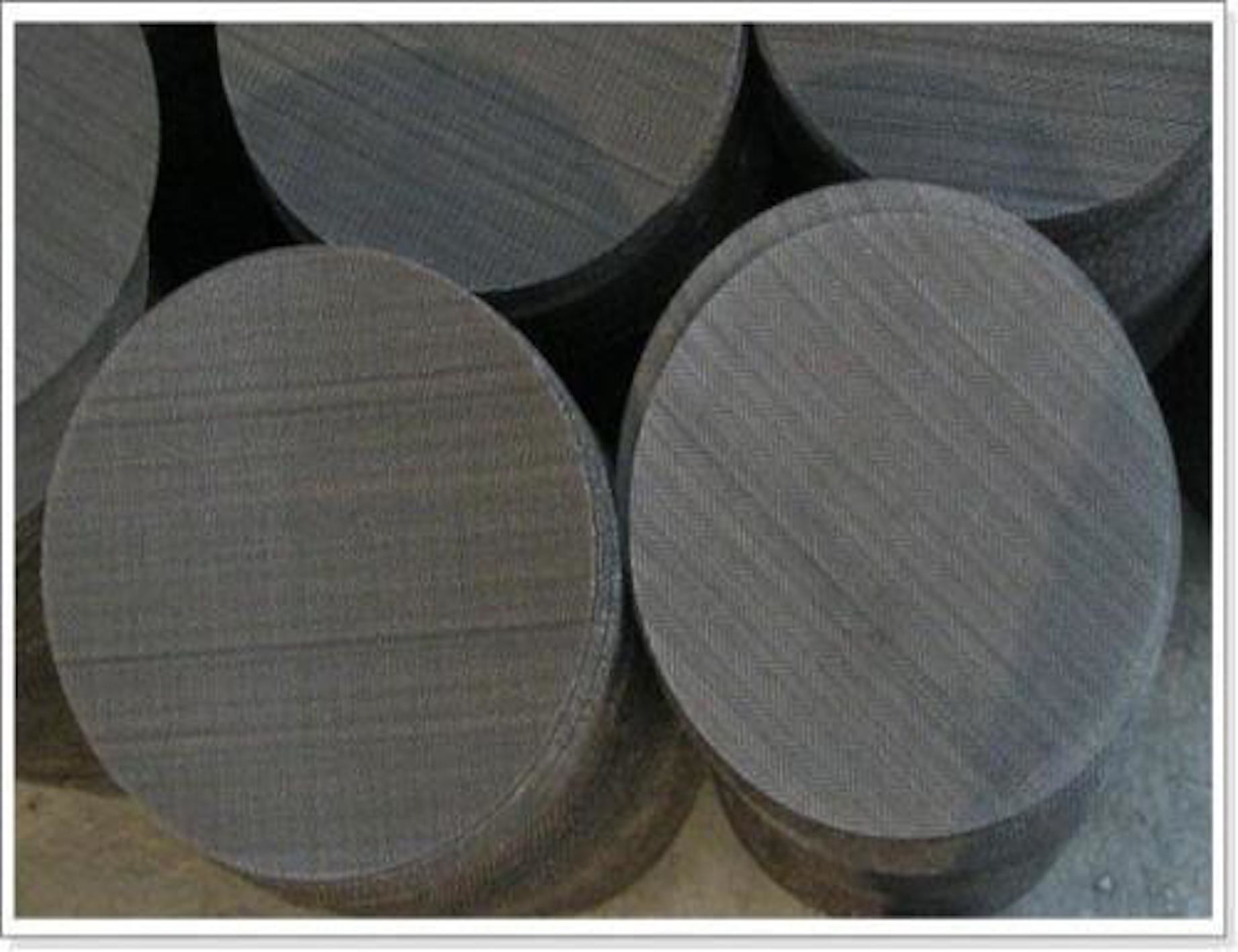

Material 304L Stainless Steel Mesh Corrosion Resistance Single Layer Stainless Steel Filter Screen
Type
By material: stainless steel filter, punching filter, etc
According to the processing technology: wrapping filter, spot welding filter, etc
According to the shape: round filter, rectangular filter, oval filter, ring filter, etc
According to thickness: single layer filter, double layer filter, three layer filter, multi-layer filter, etc
Characteristics
1. Acid and alkali resistance, high temperature resistance and wear resistance;
2. Good filtration performance and uniform surface filtration performance for 2-200um particle size;
3. Good corrosion resistance, heat resistance, pressure resistance and wear resistance;
4. The pore is uniform and the filtration precision is accurate;
5. The discharge per unit area is large;
6. Suitable for low temperature and high temperature environment;
7. Standard size, high filtration precision, easy to use.
8. After cleaning, it can be reused without replacement.
Company Introduction
Our factory is a chemical factory integrating production, sales, wholesale and retail. All products are provided with one-stop service. From wire drawing, mesh weaving, deep processing and inspection, we operate independently. All materials, sizes and specifications can be customized according to customer requirements. The company has a large number of spot stock, is one of China's relatively large manufacturers of stainless steel wire mesh.
Usage
It is used for screening and filtration in acid and alkali environment, as mud screen in petroleum industry, as screen screen in chemical fiber industry, as pickling screen in electroplating industry, as well as distillation, absorption, evaporation and filtration in petroleum, chemical industry, light industry, medicine, metallurgy, machinery, shipping, automobile and tractor industry, so as to eliminate droplets and liquid foam entrained in steam or gas, There are also cars and tractors used as air filters. Stainless steel filter screen is mainly used in rubber, plastic industry, grain and oil screening, etc.
Basic parameters of wire diameter, aperture and weight
| Mesh | Wire diameter (mm) | 1X30m / roll Weight (kg) | Aperture Customized (mm) | Standard Aperture Size |
| 1 | 2 | 60.00 | 23.4 | |
| 1 | 3 | 135.00 | 22.4 | |
| 2 | 1.19 | 42.48 | 11.51 | |
| 2 | 1.5 | 67.50 | 11.2 | |
| 2 | 1.6 | 76.80 | 11.1 | |
| 2 | 2 | 120.00 | 10.7 | |
| 2 | 3 | 270.00 | 9.7 | |
| 2 | 3.4 | 346.80 | 9.3 | |
| 4 | 0.71 | 30.25 | 5.64 | |
| 4 | 0.88 | 46.46 | 5.47 | |
| 4 | 1.19 | 84.97 | 5.16 | |
| 4 | 1.2 | 86.40 | 5.15 | |
| 4 | 1.37 | 112.61 | 4.98 | |
| 4 | 1.6 | 153.60 | 4.75 | 4.75 |
| 4 | 2 | 240.00 | 4.35 | |
| 5 | 0.37 | 10.27 | 4.71 | |
| 5 | 0.4 | 12.00 | 4.68 | |
| 5 | 0.58 | 25.23 | 4.5 | |
| 5 | 0.6 | 27.00 | 4.48 | |
| 5 | 0.81 | 49.21 | 4.27 | |
| 5 | 0.88 | 58.08 | 4.2 | 4 |
| 5 | 2 | 300.00 | 3.08 | |
| 6 | 0.71 | 45.37 | 3.523 | |
| 6 | 0.88 | 69.70 | 3.353 | 3.35 |
| 6 | 1.04 | 97.34 | 3.193 | |
| 6 | 0.19 | 3.25 | 4.043 | |
| 6 | 1.6 | 230.40 | 2.633 | |
| 7 | 0.71 | 52.93 | 2.919 | |
| 7 | 0.889 | 82.98 | 2.74 | 2.8 |
| 7 | 1.04 | 113.57 | 2.589 | |
| 7 | 1.19 | 148.69 | 2.439 | |
| 8 | 0.63 | 47.63 | 2.545 | |
| 8 | 0.71 | 60.49 | 2.465 | |
| 8 | 0.81 | 78.73 | 2.365 | 2.36 |
| 8 | 0.889 | 94.84 | 2.286 | |
| 8 | 1.08 | 139.97 | 2.095 | |
| 8 | 1.19 | 169.93 | 1.985 | |
| 8 | 1.27 | 193.55 | 1.905 | |
| 8 | 1.6 | 307.20 | 1.575 | |
| 9 | 0.58 | 45.41 | 2.242 | |
| 9 | 0.81 | 88.57 | 2.012 | |
| 10 | 0.4 | 24.00 | 2.14 | |
| 10 | 0.5 | 37.50 | 2.04 | 2 |
| 10 | 0.58 | 50.46 | 1.96 | |
| 10 | 0.63 | 59.54 | 1.91 | |
| 10 | 0.81 | 98.42 | 1.73 | |
| 10 | 0.889 | 118.55 | 1.651 | |
| 10 | 1.04 | 162.24 | 1.5 | |
| 10 | 1.19 | 212.42 | 1.35 | |
| 11 | 0.4 | 26.40 | 1.909 | |
| 11 | 0.5 | 41.25 | 1.809 | |
| 11 | 0.8 | 105.60 | 1.509 | |
| 12 | 0.4 | 28.80 | 1.717 | 1.7 |
| 12 | 0.43 | 33.28 | 1.687 | |
| 12 | 0.457 | 37.59 | 1.66 | |
| 12 | 0.58 | 60.55 | 1.537 | |
| 12 | 0.71 | 90.74 | 1.407 | |
| 12 | 0.81 | 118.10 | 1.307 | |
| 12 | 0.889 | 142.26 | 1.228 | |
| 12 | 1.04 | 194.69 | 1.077 | |
| 14 | 0.228 | 10.92 | 1.586 | |
| 14 | 0.32 | 21.50 | 1.494 | |
| 14 | 0.38 | 30.32 | 1.434 | 1.4 |
| 14 | 0.43 | 38.83 | 1.384 | |
| 14 | 0.457 | 43.86 | 1.357 | |
| 14 | 0.5 | 52.50 | 1.314 | |
| 14 | 0.58 | 70.64 | 1.234 | |
| 14 | 0.63 | 83.35 | 1.184 | |
| 14 | 0.81 | 137.78 | 1.004 | |
| 15 | 0.35 | 27.56 | 1.343 | |
| 16 | 0.228 | 12.48 | 1.36 | |
| 16 | 0.279 | 18.68 | 1.309 | |
| 16 | 0.457 | 50.12 | 1.131 | 1.18 |
| 16 | 0.58 | 80.74 | 1.008 | |
| 16 | 0.71 | 120.98 | 0.878 | |
| 16 | 0.81 | 157.46 | 0.778 | |
| 17 | 0.3 | 22.95 | 1.194 | |
| 18 | 0.19 | 9.75 | 1.221 | |
| 18 | 0.28 | 21.17 | 1.131 | |
| 18 | 0.38 | 38.99 | 1.031 | |
| 18 | 0.43 | 49.92 | 0.981 | 1 |
| 20 | 0.17 | 8.67 | 1.1 | |
| 20 | 0.215 | 13.87 | 1.055 | |
| 20 | 0.229 | 15.73 | 1.041 | |
| 20 | 0.3 | 27.00 | 0.97 | |
| 20 | 0.34 | 34.68 | 0.93 | |
| 20 | 0.356 | 38.02 | 0.914 | |
| 20 | 0.38 | 43.32 | 0.89 | |
| 20 | 0.4 | 48.00 | 0.87 | 0.85 |
| 20 | 0.45 | 60.75 | 0.82 | |
| 20 | 0.457 | 62.65 | 0.813 | |
| 20 | 0.51 | 78.03 | 0.76 | |
| 20 | 0.58 | 100.92 | 0.69 | |
| 20 | 0.635 | 120.97 | 0.635 | |
| 22 | 0.15 | 7.43 | 1.005 | |
| 22 | 0.17 | 9.54 | 0.985 | |
| 24 | 0.19 | 13.00 | 0.868 | |
| 24 | 0.216 | 16.80 | 0.842 | |
| 24 | 0.355 | 45.37 | 0.703 | |
| 25 | | | | 0.71 |
| 26 | 0.2 | 15.60 | 0.777 | |
| 26 | 0.31 | 37.48 | 0.667 | |
| 26 | 0.315 | 38.70 | 0.662 | |
| 28 | 0.19 | 15.16 | 0.717 | |
| 28 | 0.254 | 27.10 | 0.653 | |
| 28 | 0.34 | 48.55 | 0.567 | |
| 30 | 0.165 | 12.25 | 0.682 | |
| 30 | 0.2 | 18.00 | 0.647 | |
| 30 | 0.22 | 21.78 | 0.627 | |
| 30 | 0.23 | 23.81 | 0.617 | |
| 30 | 0.25 | 28.13 | 0.597 | 0.6 |
| 30 | 0.26 | 30.42 | 0.587 | |
| 30 | 0.28 | 35.28 | 0.567 | |
| 30 | 0.3 | 40.50 | 0.547 | |
| 30 | 0.33 | 49.01 | 0.517 | |
| 30 | 0.38 | 64.98 | 0.467 | |
| 30 | 0.4 | 72.00 | 0.447 | |
| 32 | 0.23 | 25.39 | 0.564 | |
| 34 | 0.25 | 31.88 | 0.497 | |
| 34 | 0.165 | 13.88 | 0.582 | |
| 35 | 0.3 | 47.25 | 0.426 | 0.5 |
| 36 | 0.2 | 21.60 | 0.506 | |
| 36 | 0.24 | 31.10 | 0.466 | |
| 38 | 0.117 | 7.80 | 0.551 | |
| 40 | 0.13 | 10.14 | 0.505 | |
| 40 | 0.15 | 13.50 | 0.485 | |
| 40 | 0.18 | 19.44 | 0.455 | |
| 40 | 0.216 | 27.99 | 0.419 | 0.425 |
| 40 | 0.22 | 29.04 | 0.415 | |
| 40 | 0.23 | 31.74 | 0.405 | |
| 40 | 0.25 | 37.50 | 0.385 | |
| 40 | 0.254 | 38.70 | 0.381 | |
| 45 | | | | 0.355 |
| 50 | 0.23 | 39.70 | 0.278 | |
| 50 | 0.19 | 27.00 | 0.318 | 0.3 |
| 60 | 0.17 | 26.00 | 0.253 | 0.25 |
| 60 | 0.11 | 10.80 | 0.313 | |
| 70 | 0.076 | 6.00 | 0.287 | |
| 70 | 0.165 | 28.50 | 0.198 | 0.212 |
| 80 | 0.12 | 17.30 | 0.198 | |
| 80 | 0.14 | 23.52 | 0.178 | 0.18 |
| 90 | 0.1 | 13.50 | 0.182 | |
| 100 | 0.05 | 3.75 | 0.204 | |
| 100 | 0.09 | 12.15 | 0.164 | |
| 100 | 0.1 | 15.00 | 0.154 | 0.15 |
| 110 | 0.09 | 13.37 | 0.141 | |
| 120 | 0.066 | 7.84 | 0.146 | |
| 120 | 0.09 | 14.58 | 0.122 | 0.125 |
| 130 | 0.043 | 3.61 | 0.152 | |
| 140 | | | | 0.106 |
| 145 | 0.048 | 5.01 | 0.127 | |
| 150 | 0.066 | 9.80 | 0.103 | |
| 160 | 0.035 | 2.94 | 0.124 | |
| 165 | 0.05 | 6.19 | 0.104 | |
| 170 | | | | 0.09 |
| 180 | 0.03 | 2.43 | 0.111 | |
| 180 | 0.045 | 5.47 | 0.096 | |
| 180 | 0.058 | 9.08 | 0.083 | |
| 200 | 0.053 | 8.43 | 0.074 | 0.075 |
| 200 | 0.058 | 10.09 | 0.069 | |
| 220 | 0.027 | 2.41 | 0.088 | |
| 230 | 0.035 | 4.23 | 0.075 | 0.063 |
| 250 | 0.04 | 6.00 | 0.062 | |
| 270 | | | | 0.053 |
| 325 | 0.035 | 5.97 | 0.043 | 0.045 |
| 350 | 0.035 | 6.43 | 0.038 | |
| 400 | 0.028 | 4.70 | 0.036 | |
| 450 | 0.028 | 5.29 | 0.028 | |
| 500 | 0.025 | 4.69 | 0.026 | |
