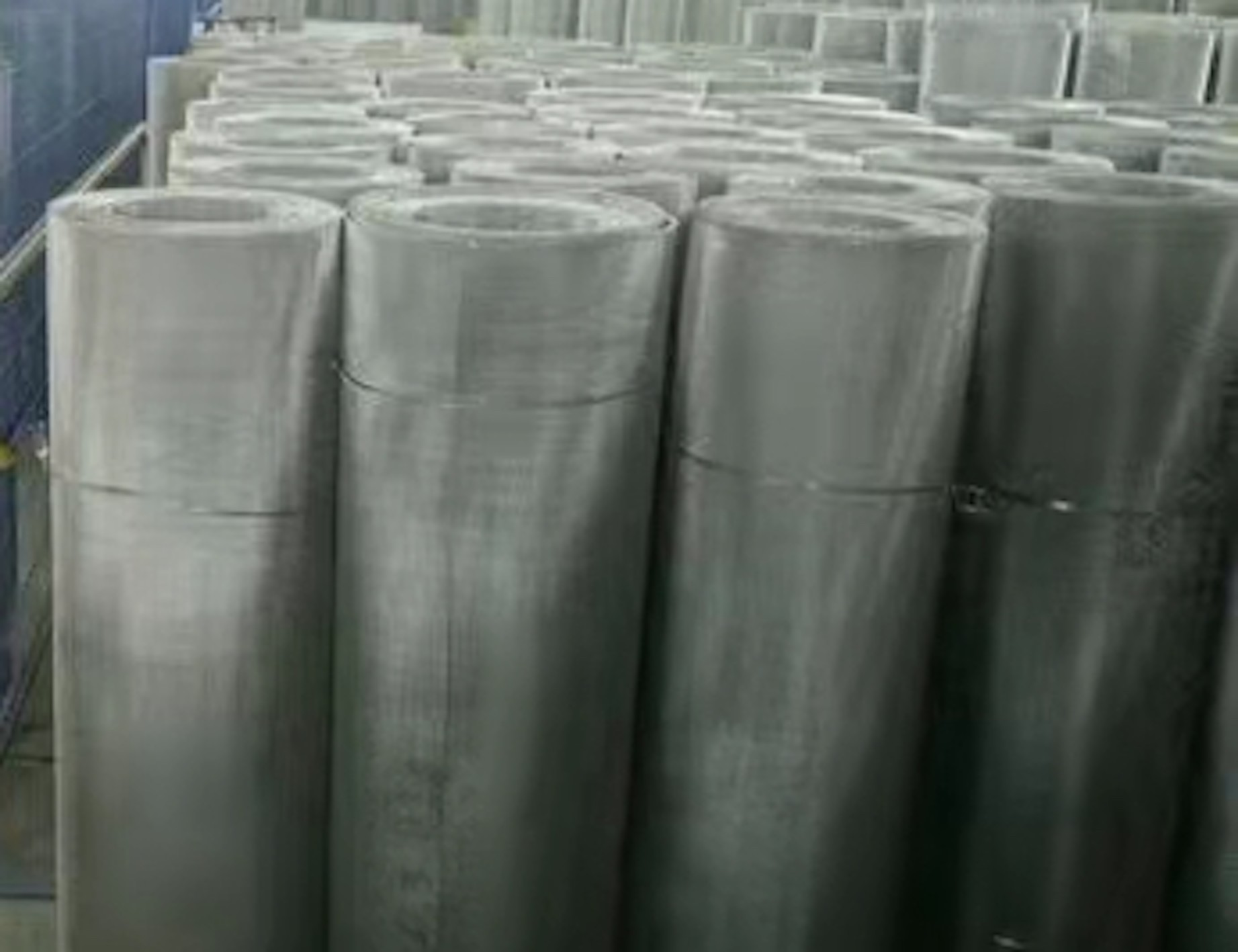

    Twill Weave Stainless Steel Industrial Filter Cloth 200 600 Mesh

    Ask Lasest Price
    Brand Name : LONGKUO METAL WIRE MESH
    Price : $66/roll ~ $500/roll
    Payment Terms : T/T, Western Union
    Supply Ability : 100,000m2/year
    Delivery Time : 5-15 work days
    • Product Details
    • Company Profile

    Twill Weave Stainless Steel Industrial Filter Cloth 200 600 Mesh

    Mesh Count 200 - 600 Mesh Filtration Twill Weave type Stainless Steel Industrial Filter Cloth


    Production process


    1. Raw materials for stainless steel wire drawing

    2. Stainless steel drawing line production

    3. Water tank wire drawing machine -- wire drawing and annealing

    4. Stainless steel wire 0.50mm-1mm

    5. Stainless steel mesh weaving

    6. Stainless Steel Diamond mesh

    7. Net cutting

    8. Finished product testing

    9. Packing and delivery


    Packaging


    Before exporting, our products will be manually packaged with plastic bag, Moistureproof paper and tailor-made wooden boxes, in order to prevent damage.


    Technology


    1. Plain weave:

    Plain weave is a knitting method in which each warp crosses each weft, the diameter of which is the same as weft, and the warp and weft form a 90 degree angle. Plain woven mesh is square and uniform in size. Each warp is crossed up and down each weft, the diameter of the warp is the same as the weft, and the warp and weft form a 90 degree angle.

    2. Twill weave:

    The knitting mode in which each warp thread crosses each two weft threads and each weft thread crosses each two diameter threads.

    3. Dense weave:

    Warp and weft yarns have different diameters and mesh numbers. They are characterized by thin warp and dense weft, thick warp and thin weft. The direction of length is warp and the direction of width is weft. Dense mesh is divided into plain weave and twill weave.

    4. Mat net twill knitting:

    The knitting mode in which each diameter filament crosses up and down every two weft yarns, and each weft filament crosses up and down every two diameter yarns.

    5. Double wire Dutch knitting:

    This kind of knitting is very similar to twill Dutch knitting. There are two weft threads, which can be closely overlapped with the warp. This kind of silk cloth is mostly used for micron level filtration.


    Material composition table


    AISI
    Material
    Chemical omposition(%)
    CSiMnPSNiCrMoCuTi
    201≤0.15≤0.755.5~7.5≤0.06≤0.033.5~5.516~18--
    304<0.08<1.0<2.0<0.035<0.038~1017~19---
    304L<0.03<1.0<2.0<0.04<0.039~1318~20---
    316<0.08<1.0<2.0<0.04<0.0310~1416~182.0~3.0--
    316L<0.03<1.0<2.0<0.04<0.0312~1516~182.0~3.0-

    Product specification parameter table



    Mesh

    Wire diameter

    mm

    Aperture

    mm

    Mesh

    Wire diameter

    mm

    Aperture

    mm

    21.8010.90900.110.172
    31.606.8661000.100.154
    41.205.151200.080.132
    50.914.171400.070.111
    60.803.4331500.0650.104
    80.602.5751600.0650.094
    100.551.991800.0530.088
    140.51.3142000.0530.074
    180.450.9612500.040.061
    200.400.873250.0350.043
    300.3050.5423500.0330.0395
    500.200.3084000.030.0335
    600.190.2235000.0250.0258
    700.140.2236000.0180.023
    800.120.198

    Twill Weave Stainless Steel Industrial Filter Cloth 200 600 MeshTwill Weave Stainless Steel Industrial Filter Cloth 200 600 MeshTwill Weave Stainless Steel Industrial Filter Cloth 200 600 Mesh
